Card Distributor CT-12 model

Capacity 120pcs/min. has been realized with servomechanism
New appearance with superior function!

1. Indentation Function

2. Easy Operation

3. Compact Design

?s For Distributing ?t
?? Card type AGELESS
?? Sheet type Desiccant
?? Premium Card
?? Campaign Seal for Promotion?@etc

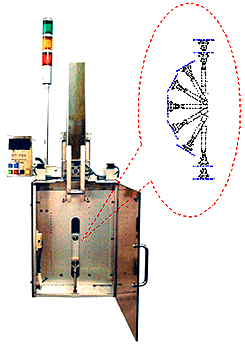

Card Distributor is the device for supplying various card, card type AGELESS, Seal and Pasteboard to user's appointed position on the conveyor of Packing machine.
?s?@Features?@?t

Compact, low noise and smooth due to adoption of serve motor mechanism.
High stability for safety operation.
l Easy to change the card with cassette type supplying.
?s?@Outer Dimensions ?@?t

??
??It is possible to change the form of cassette or add devices according to the discussion for specification.

??
Option
?E Automatic Cassette Changeover Device
?E Adjustable Stand
?E Signal Tower

?s?@Standard Specification ?@?t

Capacity 120pcs/min.

Dimension Width 300mm, Height 520mm, Depth 520mm

Weight 28kg

Power Supply AC200V, 50/60Hz

Power Consumption 800VA

Air Pressure 0.5-0.6MPa

Air Consumption 40Nl/min.

Card Size Width 30-100mm, Length 30-100mm, Thickness 1mm MAX

?? Please do not hesitate to contact ASAHI KINZOKU with full experience for Card Distributor. We also supply High-speed Card Dispenser (CT-24 model).

?? Specifications and appearance are subject to change without notice for improvement.

?? We also welcome any consult for addition or change of specification.

??For safety use

?? Read operation manual carefully before use for proper and correct operation.

?? Use the machine with indicated electric current and voltage.

?? Be sure to ground the machine, or it is danger to electrocute in case of trouble and short circuit.
