Automatic High-speed Packing Device is the device for storage single pouches of powder?@soup, liquid soup, and desiccant etc. to regular storage box.

?s?@Features?@?t

• Packing pouches supplied from filling machine and distributor automatically.
• Easy setting of storage quantity of pouches. The device is suspended automatically when the quantity is reached to setting value.
• Changeover of storage box is automatically as empty box is set.
• Horizontal fall of pouches permit stable storage.

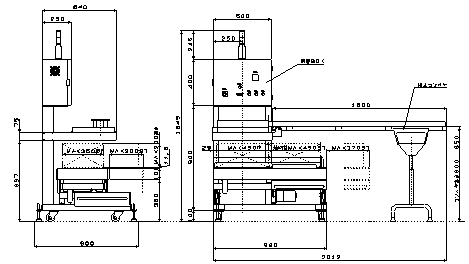

?s?@Designations of each part ?@?t

??Distributing conveyor is option.

?s?@Standard Specification ?@?t

Capacity	Single Pouch 240pcs/min. (In case of pouch length 70mm)
Dimension	Length 980mm, Height 1645mm, Depth 900mm
Weight	120kg
Power Supply	AC200V, 50/60Hz
Power Consumption	2KVA
Pouch Size	Width 65-110mm, Length 70-135mm
Storage Box Size (MAX)	Width 450mm, Height 200mm, Depth 350mm

---

?? Please do not hesitate to contact ASAHI KINZOKU with full experience for Automatic High-speed Packing Device.
?? Specifications and appearance are subject to change without notice for improvement.
?? We also welcome any consult for addition or change of specification.

	??For safety use:
	??	Read operation manual carefully before use for proper and correct operation.
	??	Use the machine with indicated electric current and voltage.
	??	Be sure to ground the machine, or it is danger to electrocute in case of trouble and short circuit.

---
