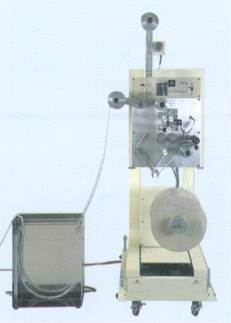

Automatic Winding Device MK-3 model (Storage Device)

?s Features ?t

Wind pouches accurately and speedy corresponding to filling machine.
Device is suspended and alarm is sounded if there is empty pouch or remarkable change of pouch pitch, as stop motion is complete.
As the device is corresponding to filling machine with reserve box, there is no influence production capacity of filling machine.
Easy setting of the quantity for winding and storage. The device is suspended automatically when the quantity is reached to setting value.

?s Specification ?t

Example of Uses Mustard/sauce pouches of Natto, Powder/Liquid Soup Pouch, Spice Pouch, Desiccant, Oxygen Absorber

Capacitiy 15m/min. (In case of box width 500mm)

Accessories Vibrator, Adjustable stand, Fold modifier, Roll unwind stand, etc.

Pouch Size Width 20-50mm, Length 30-60mm

Winding Size Winding width 200-340mm, Winding Diameter 500?Ӽ/TD>
Machine Size Width 550mm, Height 1865mm, Depth 760mm

Weight 130Kg

Power Supply AC100V, 50/60Hz

Power Consumption 0.5KVA
