RESISTACK II

High Lubulicity Treatment

Suitable for the processing to the complicated shape and pipe inside diameter, because it's superior to the circumference, film pressure uniformity.

Platable Size(mm):350x800x800

• HOME
• PRODUCTS
• RESISTAC II

download catalog

　（1MB）

CHARACTERISTICS

1. I hold fluoric resin by the minute irregularity of the plating film strongly.
2. Quantity of maintenance of the fluoric resin rises 25% from cash register stack processing.
3. Film thickness is uniform, and it's possible to process for the complicated shape and inside diameter.
4. It's superior to Inbricity, wear resistance.
5. Because the surface is covered by fluoric resin, it has a characteristic like the fluoric resin plating.
6. It passes food, the standard of the additive.

SURFACE OBSERVATION

We performed the surface observation of RESISTAC II film with the SEM.

RESISTAC II x 5000	RESISTAC II x 20000
We observe above in Kinki University joint use center.

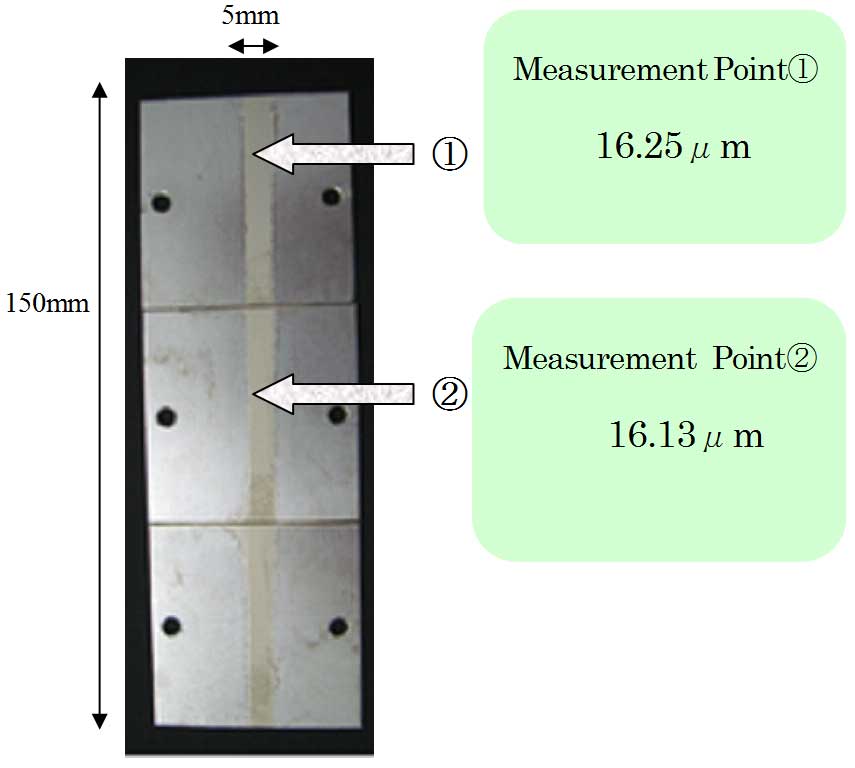

PROCCESSING TO THE INSIDE DIAMETER

We fixed Test Peace as coming to a prism-formed base 5x5mm long 150mm and measured two places of film pressure.
It' possible to process that is uniform to the prismatic inside diameter of aspect ratio 30 (Base 5x5mm, Long 150mm)
* The film pressure measurement with the fluorescence X-rays analyzer.

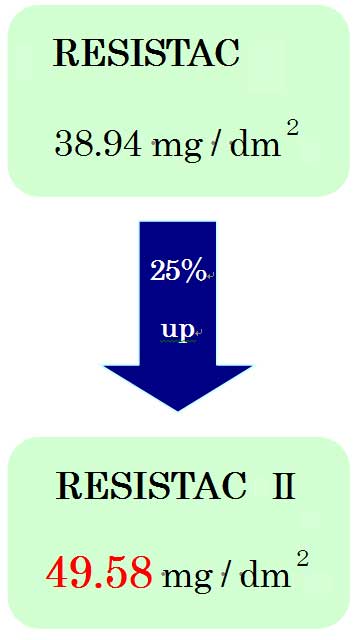

QUANTITY OF MAINTENANCE OF THE FLUORIC RESIN

I handled it in test peace and found quantity of maintenance of the fluoric resin from the weight change in before and after processing.
Quantity of fluoric resin maintenance was increased.
