Asahi Precision is the company of special plating
SEM image of SOLBLACK
High optical confinement effect was induced to creekside nanostructures.
Color component was measured by spectrophotometer.
(SE2000)
Blackness:SOLBLACK > PHOSBLACKIII
L*: Blightness (Black 0 - 100 White)
a*: Color(Green - <=> + Red)
b*: Color(Blue - <=> + Yellow)
Optical absorption was calculated from total reflection measuring result.
Heat collecting was observed by water temperature changes in the pipe.
Measurement condition was
Light source:50W
Light distance:10cm
Material of pipe:Aluminum(diag 15mm*L100mm)
Absolute reflectivity was measured by spectrophotometer at 12.
SOLBLACK was showed hegh absorption from visible area to infrared area.
* Grateful to Mr.AKITAYA of Hiroshima univ for providing data.
Asahi Precision is the company of special plating
SOLBLACK
Blackeining Electroless Plating
Low Reflection and High Optical Absorption
Platable Size(mm)：350x800x800
(Asahi Precision Co.Ltd,)TOP
CHARACTERISTICS
Optical absorption : 98% (at visible area)- Corrosion resistance : Over electroless Ni-P film (v.s. acid rain)
- Low reflection : 0.2% by incidence angle 12 (at visible area)
- Heat resistance : No effect (by 473K at 2 hours)
- Accuracy : Possible to uniformly treat at various shapes (specify film thickness +- 10%)
- Have a
high Affinity : Iron, aluminum, copper, stainless and more...
- Please contact for more information from our INQUIRY FORM
SURFACE OBSERVATION
SEM image of SOLBLACKHigh optical confinement effect was induced to creekside nanostructures.
COLOR COMPONENT
| L* | a* | b* | |
| PHOSBLACKIII | 89.9 | -5.4 | 31.3 |
| SOLBLACK | 62.2 | -4.8 | 22.8 |
(SE2000)
Blackness:SOLBLACK > PHOSBLACKIII
L*: Blightness (Black 0 - 100 White)
a*: Color(Green - <=> + Red)
b*: Color(Blue - <=> + Yellow)

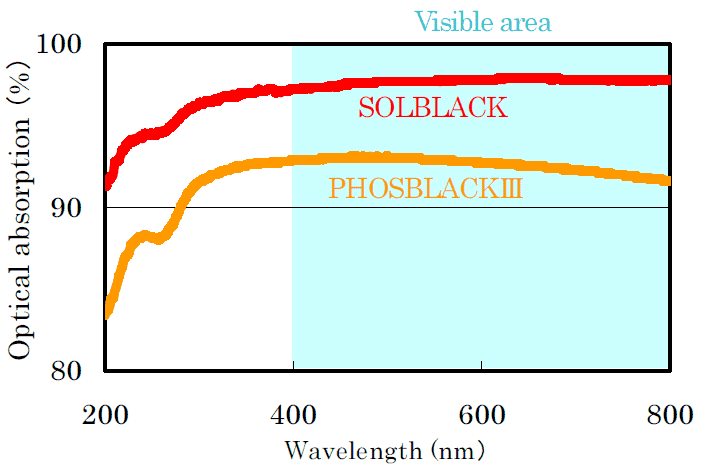

OPTICAL ABSORPTION
Optical absorption was calculated from total reflection measuring result.

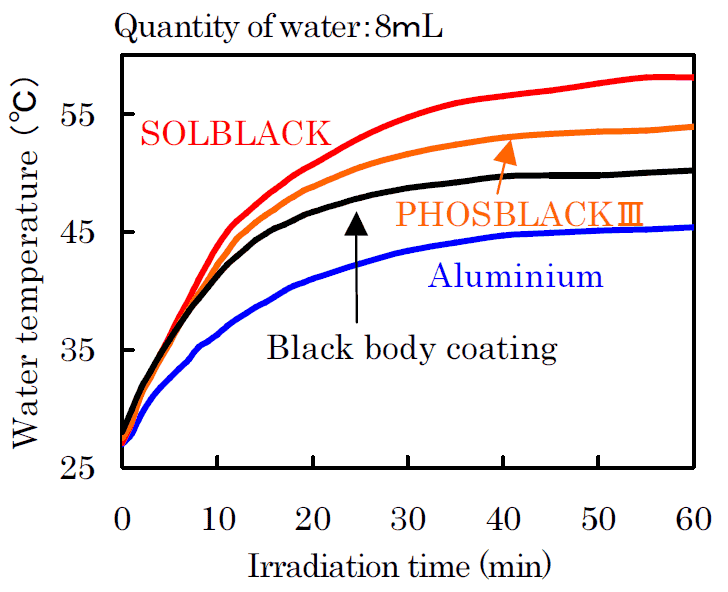

HEAT COLLECTING TEST
Heat collecting was observed by water temperature changes in the pipe.Measurement condition was
Light source:50W
Light distance:10cm
Material of pipe:Aluminum(diag 15mm*L100mm)

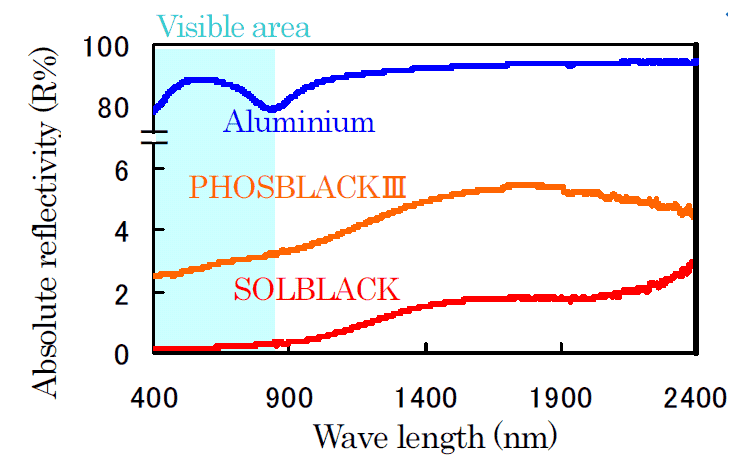

ABSOLUTE REFLECTIVITY
Absolute reflectivity was measured by spectrophotometer at 12.SOLBLACK was showed hegh absorption from visible area to infrared area.
* Grateful to Mr.AKITAYA of Hiroshima univ for providing data.
