NiwphosⅡPRODUCT INFORMATION
Electroless Ni-W-P plating have high corrosion resistance, hardness and high covering power
Functions / characteristics
Processable size（mm）
350×800×800
Characteristic
- Hardness is better than electroless plating
- Hardness does not decrease at 400 ℃
- Corrosion resistance is better than electroless plating
- Abrasion resistance is better than electroless plating
property
| Hardness | Hardness can be increased up to 800HV. |
|---|---|
| Corrosion resistance | Corrosion resistance is better than electroless plating |
| Abrasion resistance | Abrasion resistance is better than electroless plating |
| Materials | A variety of materials can be treated. Please contact us for details. |

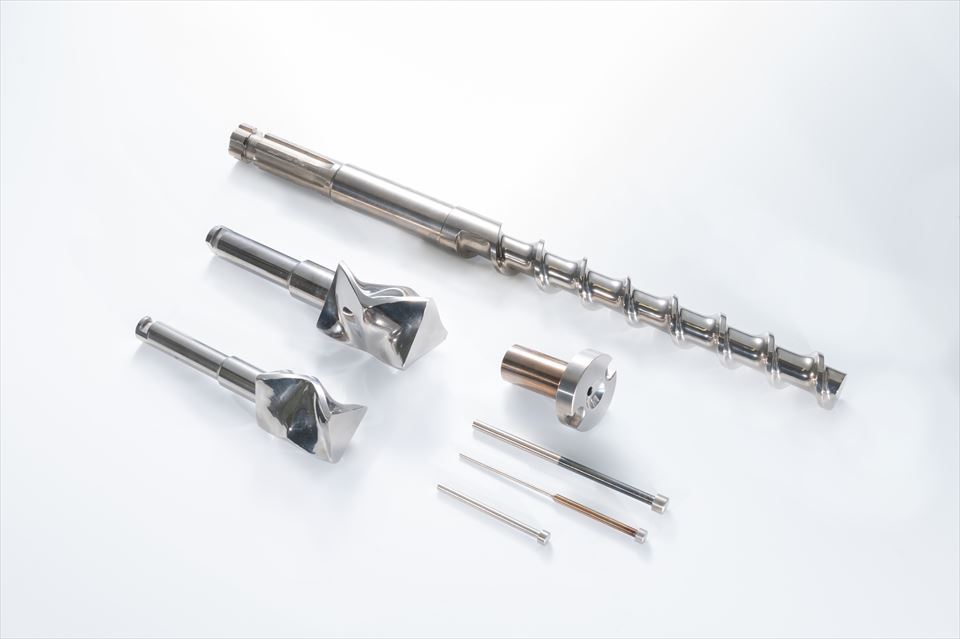

Usefulness
| Mold for PTFE, PVC, Rubber product and etc. |
| ゴム成形金型 |
TEST DATA

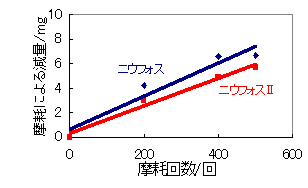

Abrasion resistance test
Test method
We evaluated with abrasive wheel wear test
Result
Abrasion resistance is improved by heat treatment.

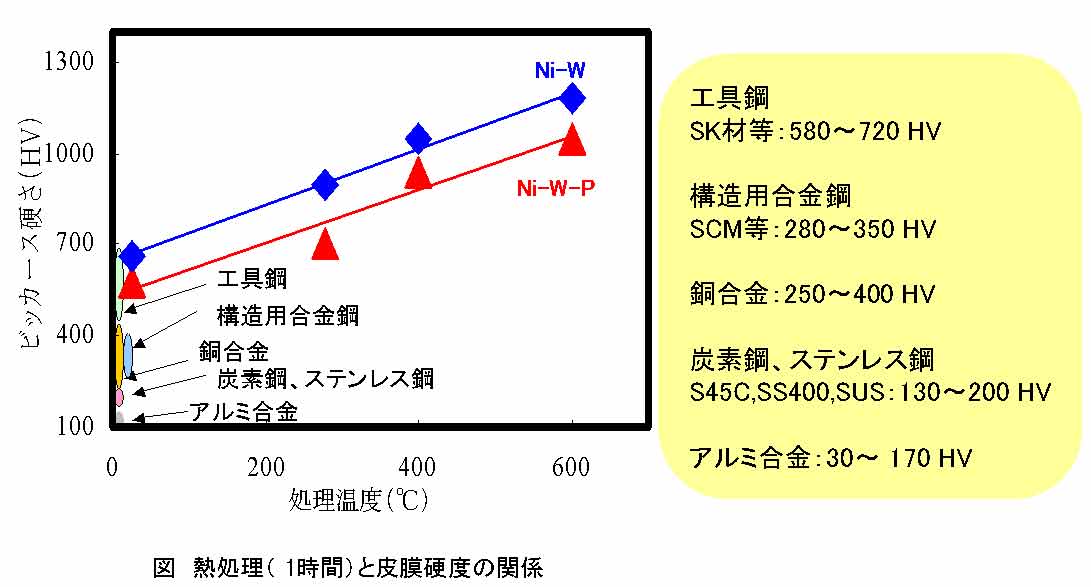

Hardness
Test method
We measured by the Vickers hardness test.
Weight：10gf
Result

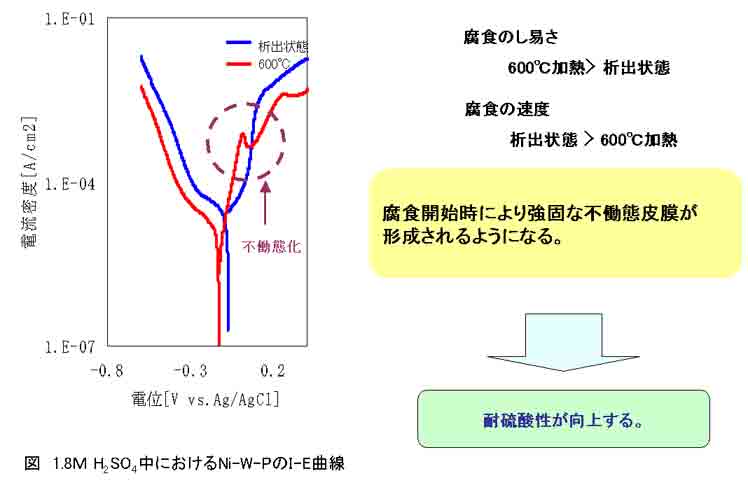

Corrosion resistance
Test method
We measured electric polarization in sulfuric acid.
Measurement solution：1.8M硫酸水溶液
液量 ：100ｍL
Result
