ResistackPRODUCT INFORMATION
Highly lubricious coating.
Functions / characteristics
Processable size（mm）
350×800×800
Characteristic
- It firmly fixes a thick fluororesin layer to coat with fluororesin in the spacial coating.
- Non adhesiveness is about the same as PTFE coating.
- Abrasion resistance is better than electroless plating.
- Coating is provided a uniform thickness with complicated shape.
- Conforms to food sanitation and food additive standards.
Property
| Non-adhesiveness | Excellent non-adhesiveness of tapes, etc. |
|---|---|
| Abrasion resistance | Abrasion resistance is better than electroless plating |
| Corrosion resistance | Corrosion resistance is better than electroless plating |
| Accuracy | It has a uniform coating even so complicated shape. |
| Materials | A variety of materials can be treated. Please contact us for details. |
Usefulness

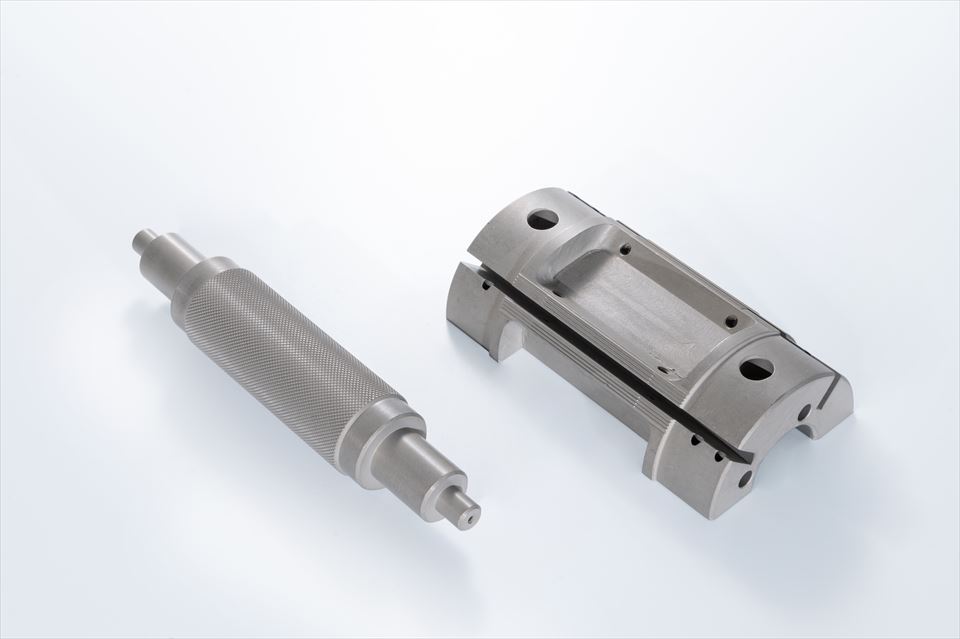

| Packaging machine parts | Heat sealer, Roller, Hopper and etc. |
|---|---|
| Food processing machinery parts. | Stirring shaft, Cylinder, Nozzle and etc. |
| Pharmaceutical machinery parts. | Disk tray, Tablet scale and etc. |
| The others | Mold for urethane foam and etc. |
TEST DATA
Surface observation
Test method
Surface observation with SEM
Equipment used: JEOL S-4800
Result
レジスタック（20000倍）
レジスタックⅡ（20000倍）
近畿大学 共同利用センターにて観察
Non-adhesiveness
Test method
The resistance when peeling off the silicone adhesive tape was measured.
Result
テープ面積５㎠
| 処理名 | Resistack | Technophos | Technomite | 無電解 ニッケル |
無電解 アルマイト |
|---|---|---|---|---|---|
| 100℃→５分 | 0.0㎠ 0% |
0.0㎠ 0% |
0.0㎠ 0% |
5.0㎠ 100% |
5.0㎠ 100% |
| 180℃→５分 | 0.0㎠ 0% |
0.0㎠ 0% |
0.0㎠ 0% |
5.0㎠ 100% |
5.0㎠ 100% |
| 250℃→５分 | 0.0㎠ 0% |
3.0㎠ 60% |
4.0㎠ 80% |
5.0㎠ 100% |
5.0㎠ 100% |
％＝テープ面積に対する残存面積比
値が小さい程非粘着性が良好
Covering power for complex shape
Test method
Coating thickness on a square tube was measured by EDS.
Result
アスペクト比30の角筒状の内径に均一な膜厚保の処理が可能
