TECHNOPHOSPRODUCT INFORMATION
Fluororesin coating on electroless Ni-P coating
Functions / characteristics
Processable size（mm）
450×1800×1800
Processable materials
アルミ（1000番手系）、ステンレス
Characteristic
- Surface is smooth and hardness.
- It has strong adhesion to base material so it is not peel off.
- It has lubricity.
- It has a uniform coating even so complicated shape.
- Hardness and abrasion resistance is better than electroless plating.
- It has passed the conforms to food sanitation and food additive standards.
Property
| Non-adhesiveness | Excellent non-adhesiveness of tapes, etc. |
|---|---|
| Abrasion resistance | Abrasion resistance is better than electroless plating |
| Corrosion resistance | Corrosion resistance is better than electroless plating |
| Accuracy | It has a uniform coating even so complicated shape. |
| Materials | A variety of materials can be treated. Please contact us for details. |

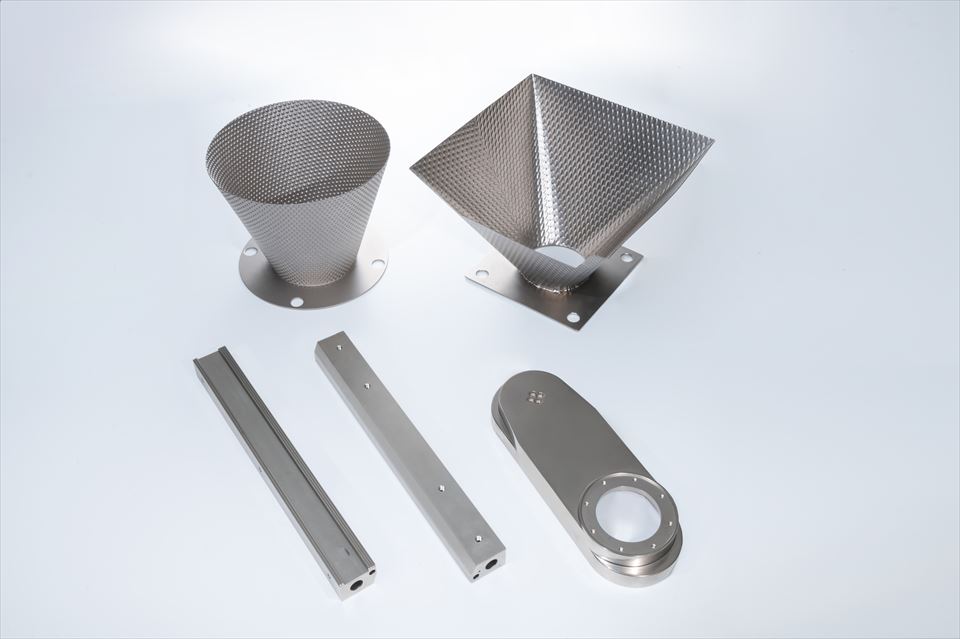

Usefulness
| Packaging machine parts | Heat sealer, Roller, Hopper and etc. |
|---|---|
| Food processing machinery parts. | Stirring shaft, Cylinder, Nozzle and etc. |
| Pharmaceutical machinery parts. | Disk tray, Tablet scale and etc. |
| The others | Textile machinery parts, Printing machinery parts and etc. |
TEST DATA
非粘着性、撥水性 、硬度
Test method
- 非粘着性
- テープ引き剥がし時の荷重を測定
- 接 触 角
- 水滴を2 μL滴下し、表面との接触角度を測定
- 摩擦係数
- サンプル表面で硬球を摺動させ測定
Result
| 処理名 | 引き剥がし荷重(N/cm) | 接触角 | 摩擦係数 |
|---|---|---|---|
| 無電解めっき | 1.41 | 89.6° | 0.619 |
| TECHNOPHOS | 0.7 | 108.4° | 0.480 |
Corrosion resistance
Test method
試験片を蒸留水又は脱イオン水で洗浄し、柔らかい布でぬぐい乾燥させた後ASTM-B-117の方法に従って５％塩水噴霧試験を200時間行なった。
Result
No corrosion after 200 hours.
